How To Get the Airwheel Twin-wheel Electric Scooter Q1's Tires Changed?

  • Source:Airwheel

Abstract:The Airwheel Q series products guarantee a high standard of stability, thanks to its twin wheels, as well as an extended usage range.

Airwheel intelligent electric scooter is well received globally, featuring the portability and utility. Its light weight does not have an effect on the using of branded lithium battery, which other Airwheel products equipped with. Then quality and range is also excellent. The high quality tires make Airwheel has better skid resistance and stronger grip effect. Though the tire size of Airwheel Q1 is only 12.5in, its max load reaches 120kg. 100mm platform height provides the max. climbing angel of 15° (riders weighing 60kg get up to 18°) with the max. speed 18km/h.

http://www.airwheel.net/home/aftersale

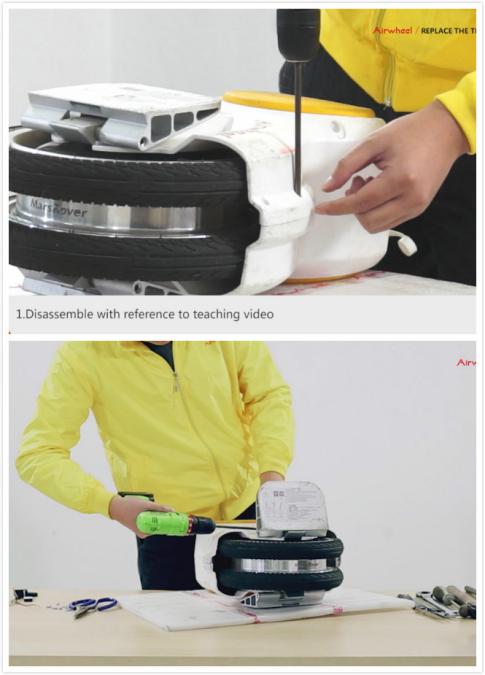

The more frequently ride Q1 smart mini electric scooter, the more attention should be paid to the tires. To repair or change the inner or outer tire, riders need to open one side cover (the one without indicator lights). Firstly, you need to disassemble as the following pictures show. Unscrew the bolts on the sides, then the bolts on the centre, and then open the casing. Take special care with the connecting wires set alongside the inner rim, no dragging or cracking open.



airboard

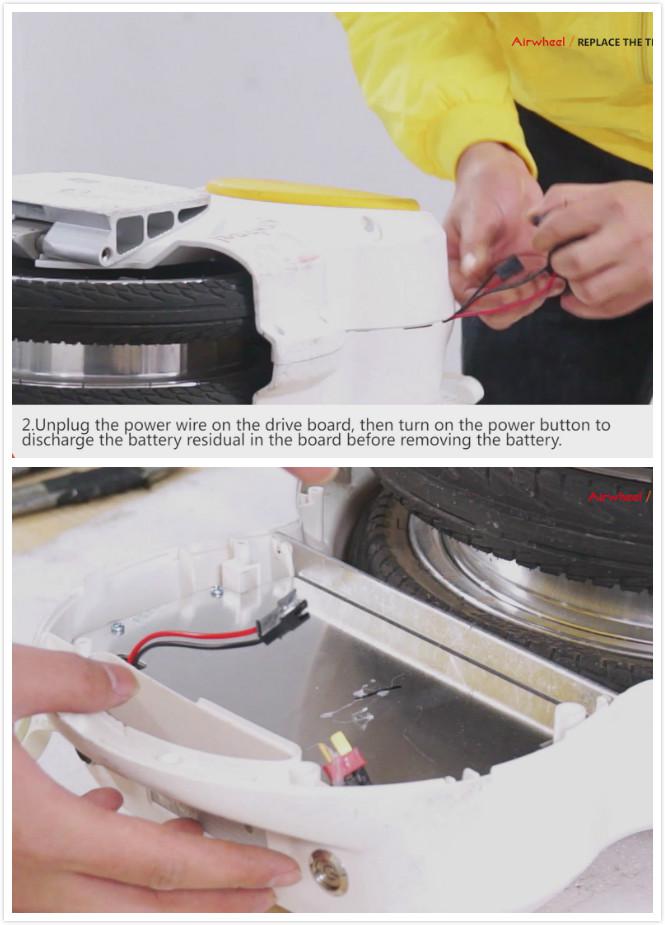

Then, unplug the power wire on the drive board, turn on the power to discharge the battery residual in the board before removing the battery.



segways

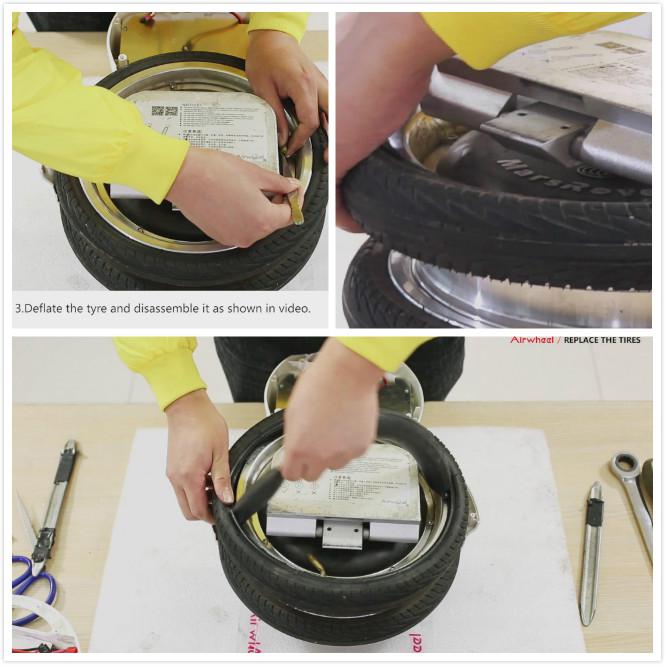

Thirdly, deflate the tires and disassemble it as the following pictures show.



electric skateboard

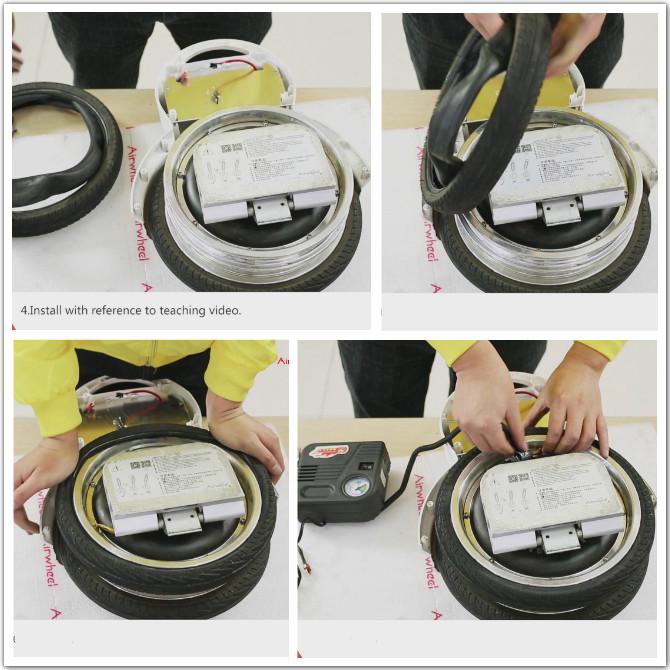

After disassembling the old tires, you can install the new ones. It will be easier to install it as it requires the same steps as removing it. When the tires are installed, you need to use the professional tool to inflate.



electric scooter

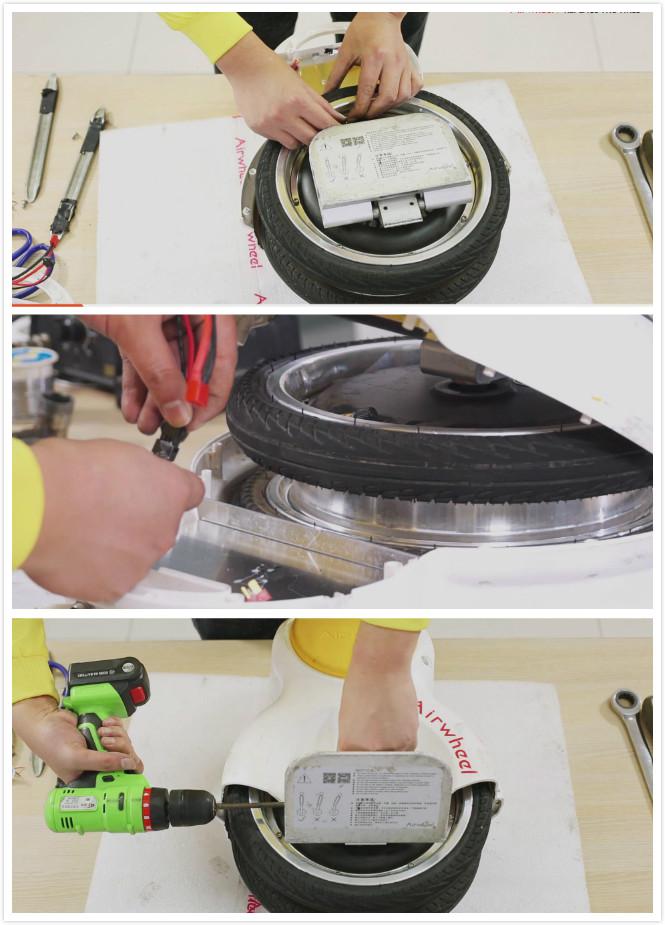

The side cover is needed to be installed to finish the replacement of tire change,



balance scooter


When Airwheel Q1 twin-wheel electric scooter is used for a period, it should be requested professional or designated service station for a comprehensive inspection and adjustment to ensure the comfort, safety and normal service life. Also, you are welcomed to visit https://youtu.be/kEu2pkZ5Egw to see the more detailed steps.
