Airwheel Z3 Folding Electric Scooter Maintenance: To Replace the Motor

  • Source:Airwheel

Abstract: Airwheel Z3 an innovative lightweight electric scooter combines the minimal size of a scooter with the ability to move about independently, thanks to a small but powerful silent motor. The following shows the steps to replace the powerful motor.

http://www.airwheel.net/home/aftersale

Most electric scooters make the standing board as narrow as possible, to ensure the portability. People can only stand with the feet front and back which is a very uncomfortable posture. Airwheel Z3 intelligent electric scooter installs foldable pedals with anterior standing design, according with principles of ergonomics, as it changes the side standing which easily cause fatigue. Its thoughtful design is fully manifested when it comes to storing: foldable handlebars and pedals on the support platform turn this electric scooter into a very small package, allowing it to be stowed in very small spaces.

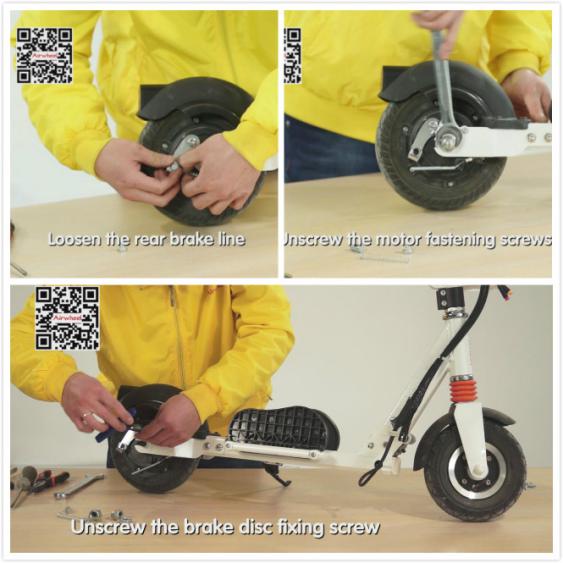

The motor plays a key role to provide riders with comfortable riding experience and the following shows how to get the Z3 smart 2 wheel electric scooter's motor changed. Firstly, loosen the rear brake line, unscrew the motor fastening screws and the brake disc fixing screw.

cheap electric scooters

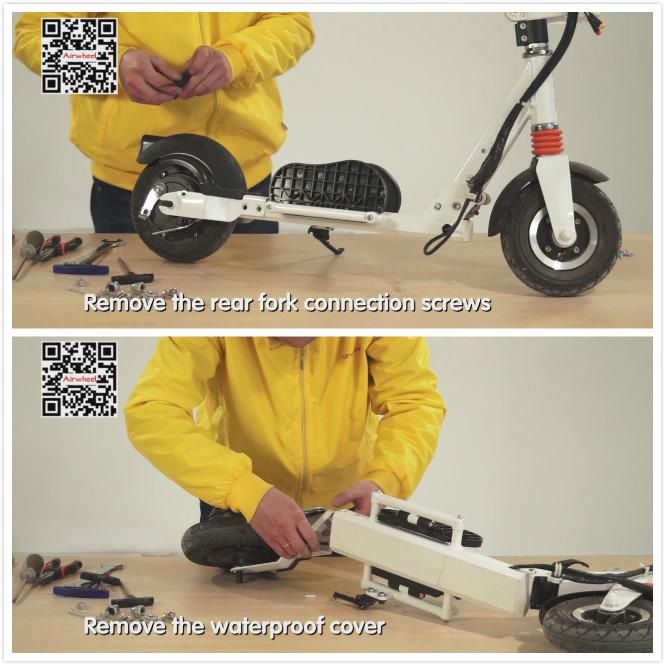

Then, remove the rear fork connection screws and remove the water resistant cover.

electric scooter for adults

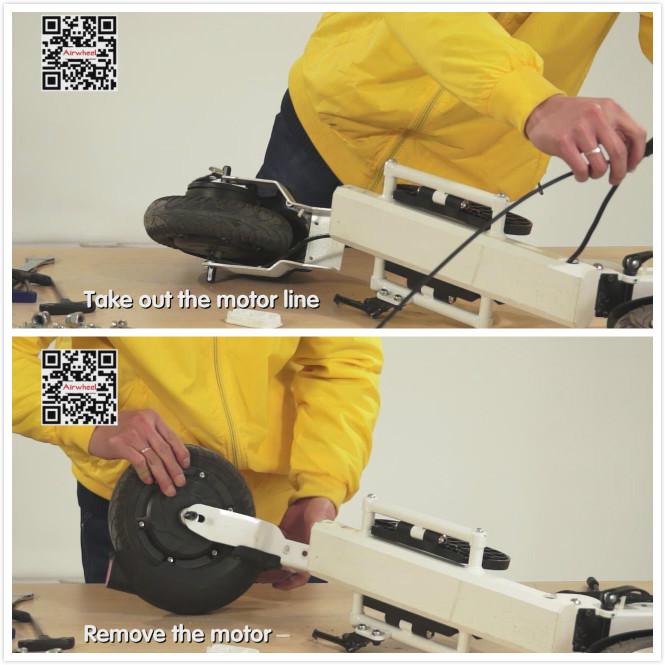

Take out the motor line and remove the motor.

smart electric scooter for sale

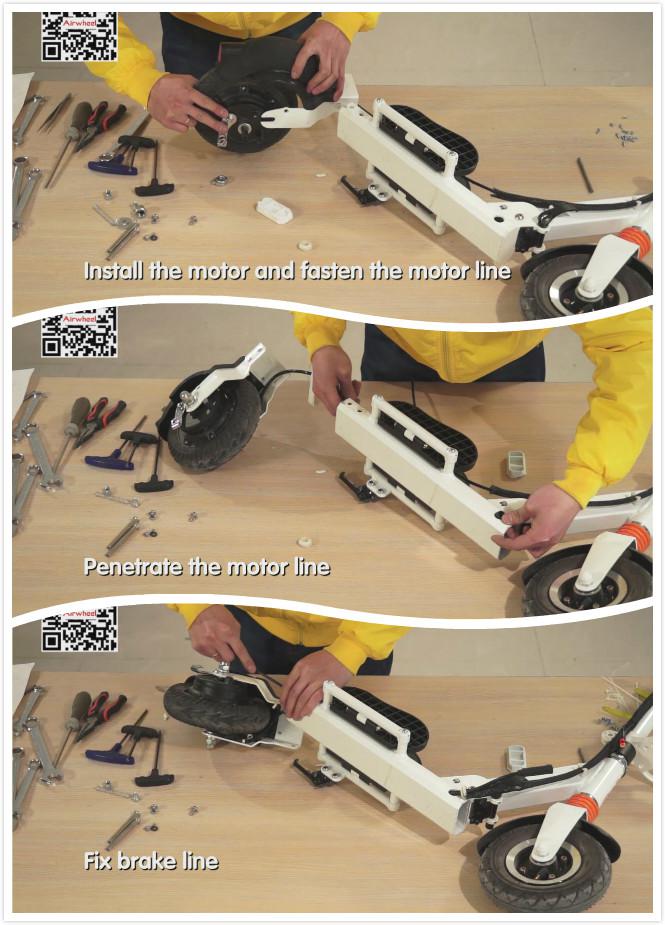

After all the steps are finished, now you can install the motor and fasten the motor line. Penetrate the motor line and fix the brake line.

balancing electric scooter

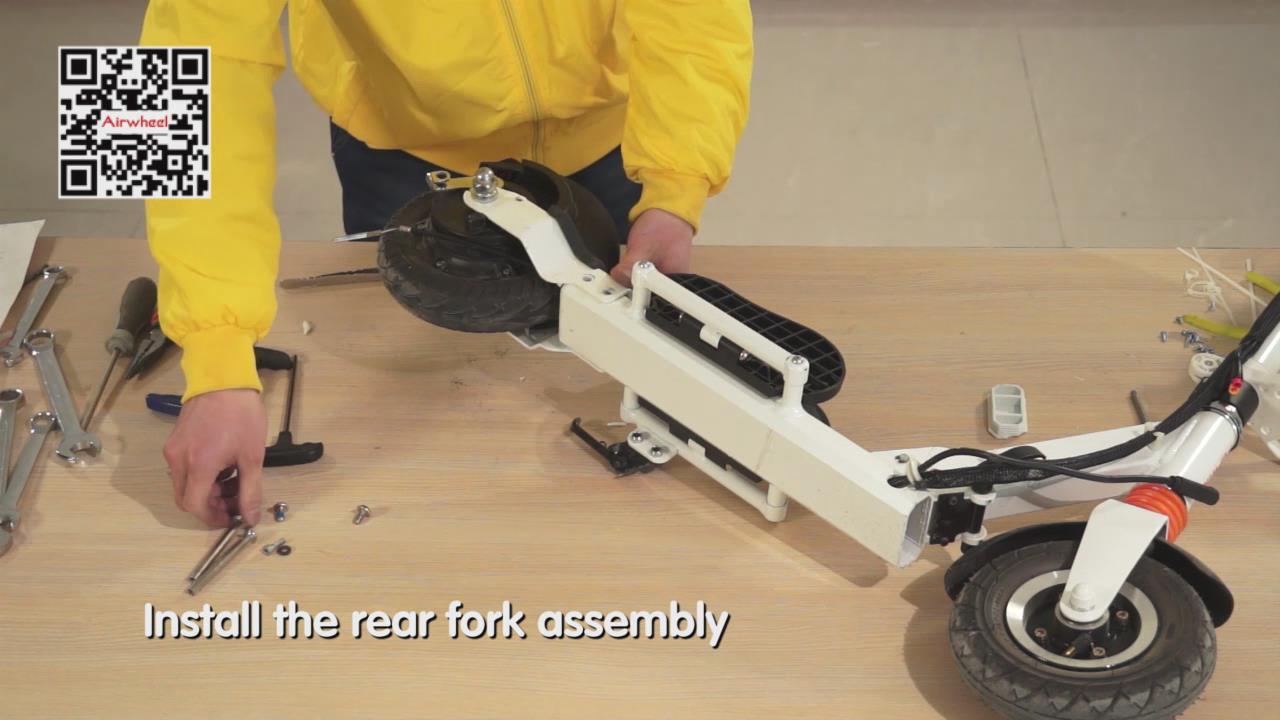

Based on the removing steps, you can install the components one by one. Install the rear fork assembly.

personal electric scooter

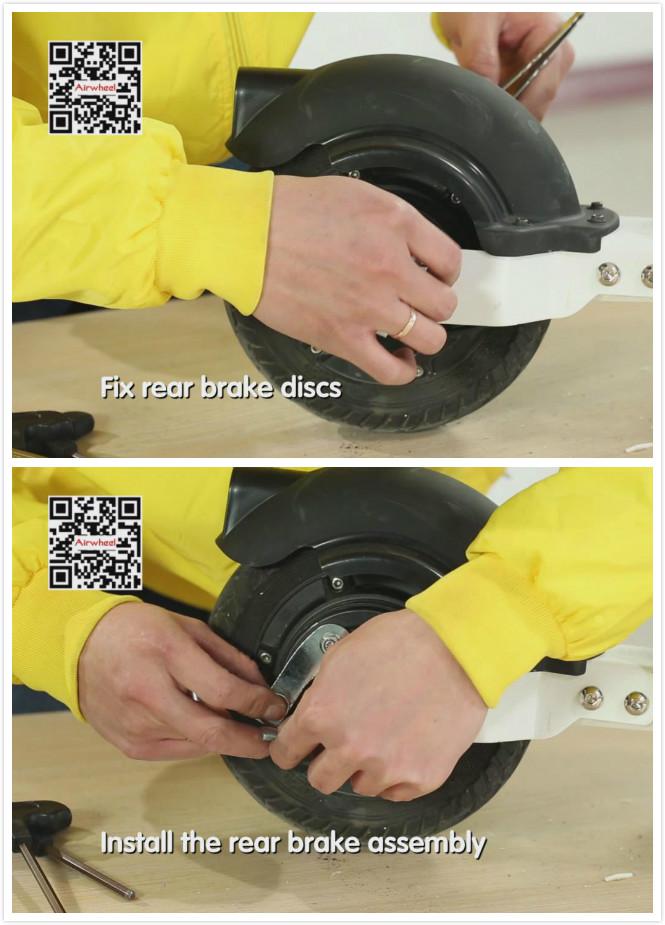

Then, fix the rear brake discs and install the rear brake assembly.

foldable electric scooter for adults

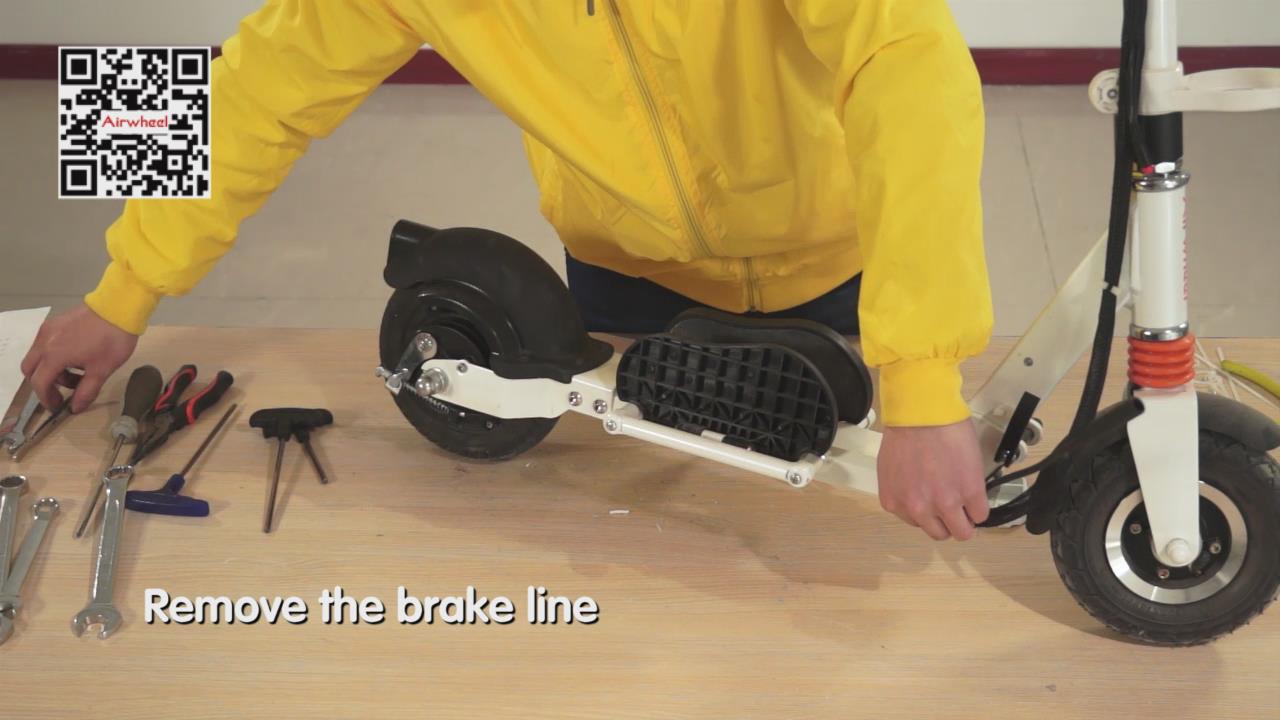

Remove the brake line to finish the replacement of motor.

electric scooters price

Speed is essential for a means of transport capable of deftly getting around city traffic and a powerful motor on Z3 mini electric scooter will help riders enjoy the speedy and safe riding experience with the brake-assist system that helps riders increase the brake force to shorten braking distance when there is emergency braking. If the above steps cannot satisfy you, you are welcomed to visit Airwheel Products Repair to watch the maintenance video of Airwheel Z3's motor.
