Do You Know How To Change The Motor Of Airwheel S8 Mini self-balancing scooter?

  • Source:Airwheel

Abstract: Dual motors of Airwheel S8 self-balancing electric scooter provide strong power with steady and continuous power output to ensure the vehicle negotiate on slopes, sand and other road conditions as easily as riding on plain roads. Do you know how to change the motor?

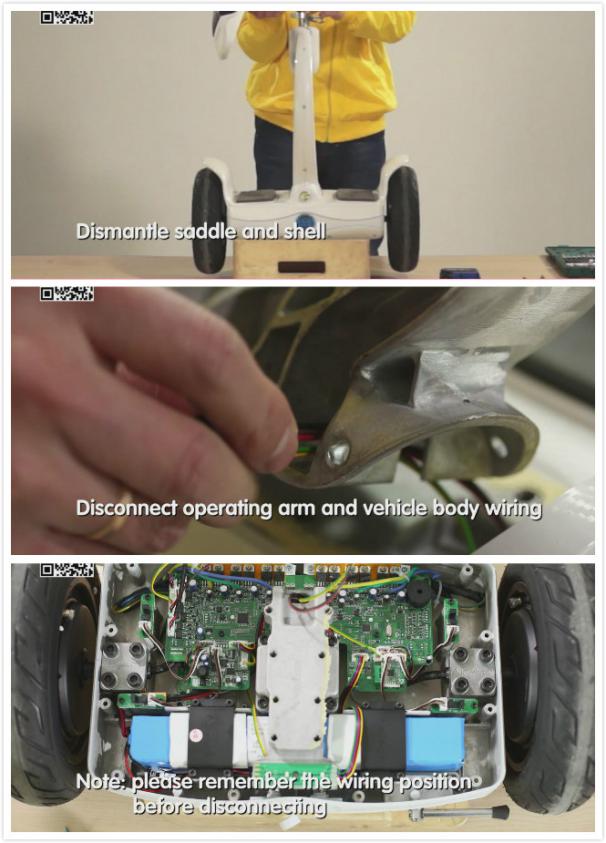

Airwheel S8 integrates the sit-on mode of ride with the stand-on mode of ride. With the special riding format of S8 saddle equipped electric scooter, riders are able to commute with the electric scooter even in bad weathers, which brings much convenience to people's daily life. Motor is important for a smooth ride. The following describes how to get motor changed. Firstly, dismantle saddle and shell and disconnect operating arm and vehicle body wiring. Note: please remember the wiring position before disconnecting.

electric self-balancing scooter

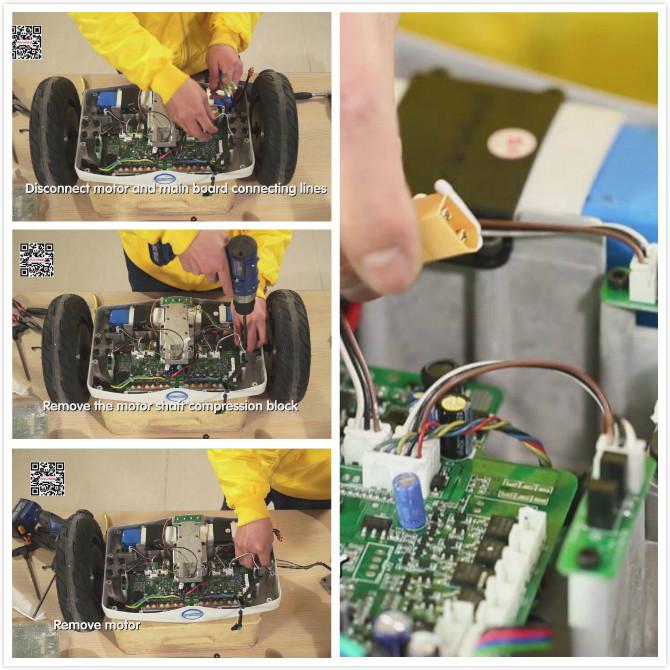

1.Disconnect power and disconnect motor and main board connecting lines. Remove the motor shaft compression block and then remove motor.

Disconnect power and disconnect motor and main board

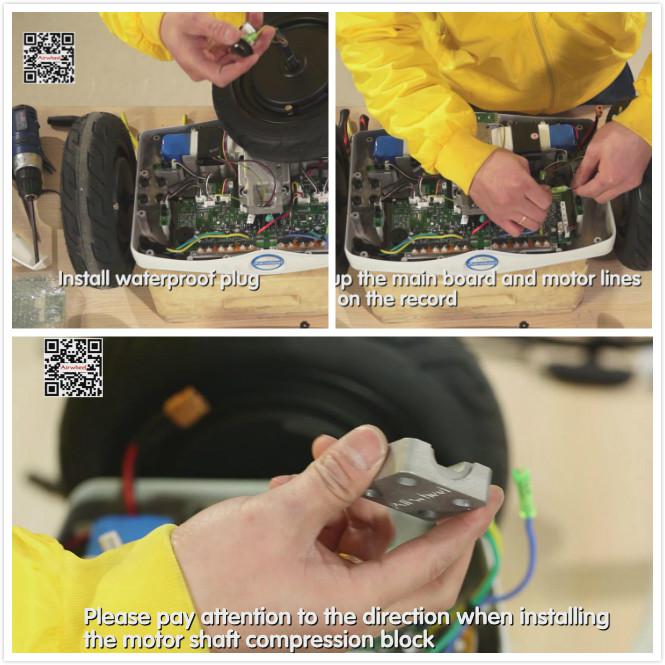

2.Install water resistant plug. Please pay attention to the direction when installing the motor shaft compression block. Clear up the main board and motor lines based on the record.

install water resistant plug

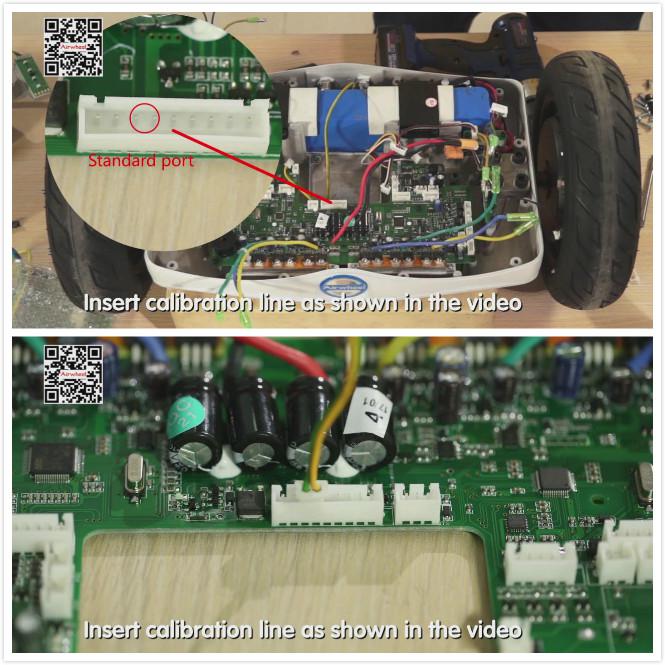

3.The next step is calibration. Keep S8 2-wheeled electric scooter horizontal and its wheels hang up. Insert calibration line as shown in the picture. Please pay attention to the standard port.

calibration

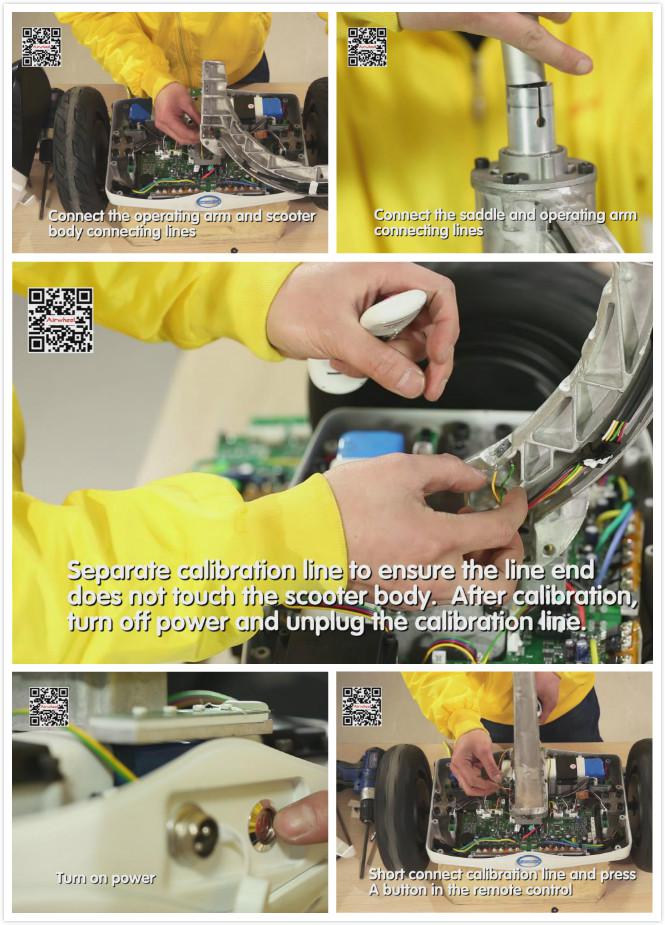

4.Connect the operating arm and scooter body connecting lines and connect the saddle and operating arm connecting lines. Then, turn on power, short connect calibration line and press A button in the remote control. Separate calibration line to ensure the line end does not touch the scooter body. After calibration, turn off power and unplug the calibration line.

Connect the operating arm and scooter body

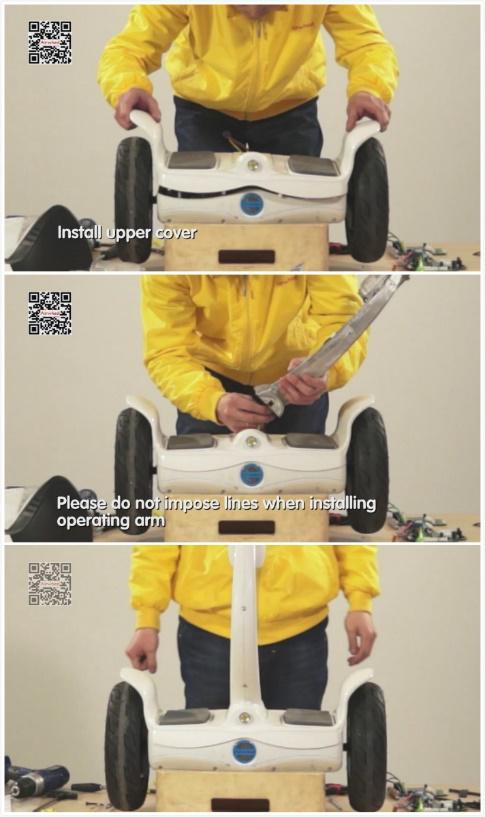

5.Install upper cover. Please do not impose lines when installing operating arm.

Install upper cover



There is also a video available at YouTube https://www.youtube.com/watch?v=IPYvY3ho578.

If you have any question, please feel free to Contact Us.
